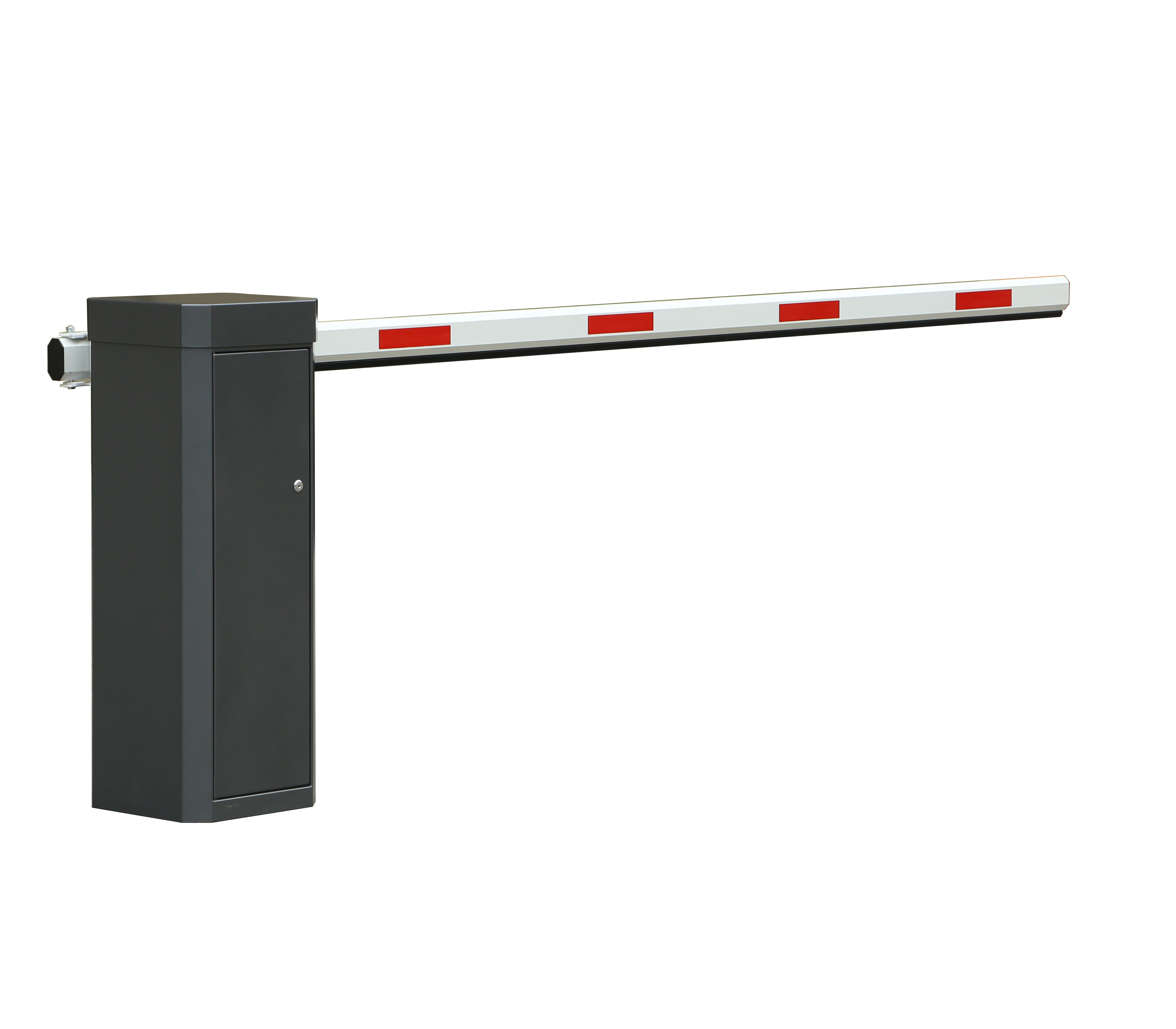

    Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System

    Ask Lasest Price
    Brand Name : SONGRUI
    Model Number : BG3009
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 5-8 WORK DAYS
    • Product Details
    • Company Profile

    Efficient Automatic IP54 Boom Barrier Gate , 8W Parking Barrier Gate System

    Efficient Servo Automatic Boom Barrier Gate Motor
    The most important part of the gate is the movement. As the core part of the gate, it must be well maintained. Cut off the power supply to clean the dust on the surface, add oil and lubricate the transmission part, check whether the screws of the fastening part are loose, check the wear condition of easily worn parts, replace the parts whose wear degree exceeds the specified requirements, and check whether the positioning arm and positioning plate are loose If the clearance exceeds 3mm, it shall be replaced in time.

    Features:

    1. Efficient Servo Motor
    Low power high output, energy conservation and environmental friendly. The output is 100W;
    2. Efficient and precise planetary reducer drive
    Equipped with the same planetary reducer as industrial robots and industrial automation equipment—double planetary reducer.
    3. Advanced servo controlling system
    Grasped core technology, with fast speed and high accuracy, it genuinely realized the PID closed loop control between running speed and acceleration.
    4. High Security
    Automatically lifting when power off, which complies with the fire safety requirements. Anti-collision protection function.
    Auto-Reverse or Auto-Stop function when hitting obstacles.
    5. Five “without” design
    Without position sensor;without shock absorption rubber brick; without clutch device, automatically lifting when power off, or can be set barrier arm lifted manually; without keyway design, no more worries about hidden danger by the gap between key and keyway and the lever jitter problem; without brake design, no more worries about problem caused by brake wear and the resulting reliability problem.6.
    6. All-weather adaptability
    Excellent weather ability index, working temperature from -40℃to 80℃. All- weather working, no matter in freezing cold winter or in scorching heat summer.
    7. Backup battery
    Optional connect with DC24V backup battery, compatible with solar system, wind power generation, moveable work anywhere anytime.

    Product Specification:

    Unit Model

    BG3009

    BG4014

    BG5025

    BG6035

    Boom Length/Sectional Size

    ≤3.5m/ø75mm
    Octagonal Bar

    ≤4.0m/ø75mm
    Octagonal Bar

    ≤5.0m/ø75mm
    Octagonal Bar

    ≤6.0m/ø75mm
    Octagonal Bar

    Open/close Time

    0.9 sec

    1.4 sec

    2.5 sec

    3.5 sec

    Power

    100W

    Power Supply

    AC110-264V / 47-63Hz

    Motor No-load Speed

    3000r/min

    Service Life

    5-10 million times

    Driving Method

    Servo Motor + Planetary Reducer

    Protection Level

    IP54

    Operating Temperature

    -40℃~80℃
    (temperature under -20℃should be equipped with electric heating plate)

    Running Noise

    ≤50dB

    Gross Weight

    51KG


    Our service:
    Welcome OEM&ODM orders

    1. Logo printing on products;
    2. Customized color box or carton;
    3. Any your ideas on products we can help you to design and put it into production.
