    120 Volt 15RPM 45R AC Radio 10N.M Mosel Tubular Motor

    Ask Lasest Price
    Brand Name : SONGRUI
    Model Number : YX45R-10/15
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 Set/Sets per Month
    Delivery Time : 5-8 WORK DAYS
    • Product Details
    • Company Profile

    120 Volt 15RPM 45R AC Radio 10N.M Mosel Tubular Motor

    45R AC Radio Type-Mechanical Limit + Build-in Receiver Rolling Door Motor Garage Doors


    Detailed product description:

    1. Radio Type-Mechanical Limit + Build-in Receiver.

    2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

    3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.

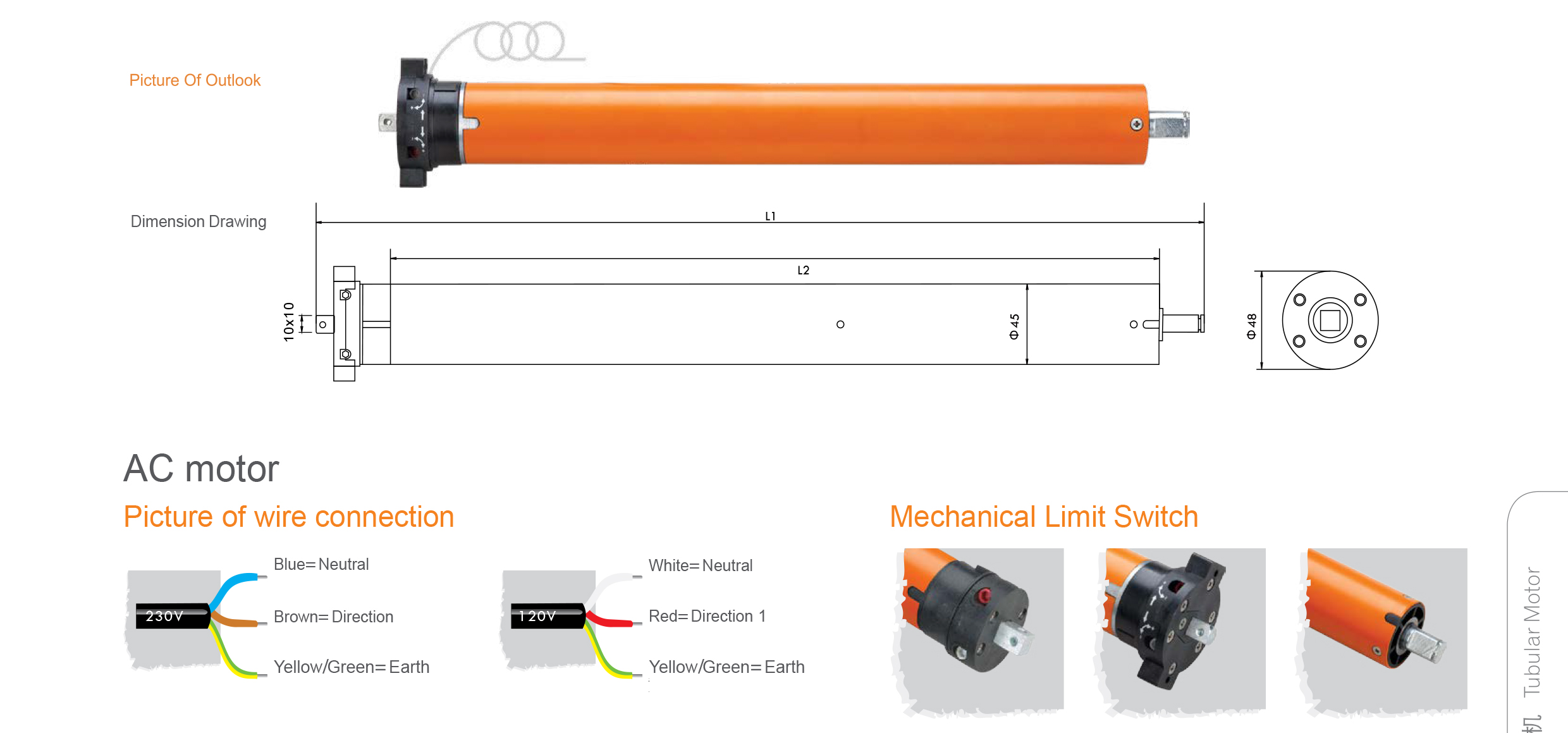

    Main technical parameters:

    YS45R

    10N.m/20Kg

    AC230V 50Hz

    TypeYX45R-10/15YX45R-10/26YX45R-15/15YX45R-20/15YX45R-20/26YX45R-30/15YX45R-40/15YX45R-50/12YX45R-60/8YX45R-70/9
    Rated Torque (N.m)10101520203040506070
    Rated Speed (rpm)152615152615151289
    Rated Power (W)125150140150215200215230235244
    Rated Current (A)0.540.650.610.650.930.900.931.001.021.06
    Running Time (min)4444444444
    Protection Class (IP)IP44IP44IP44IP44IP44IP44IP44IP44IP44IP44
    Max. Turns (turn)21/3621/3621/3621/3621/3621/3621/3621/3621/3621/36
    L1/L2(mm)555/480555/480555/480555/480655/580655/580655/580655/580655/580675/600

    AC120V 60Hz

    TypeYX45R-10/18YX45R-10/31YX45R-15/18YX45R-20/18YX45R-20/31YX45R-30/14YX45R-40/14YX45R-50/14YX45R-60/10YX45R-70/11
    Rated Torque (N.m)10101520203040506070
    Rated Speed (rpm)18311818311414141011
    Rated Power (W)133140140140165149165180185219
    Rated Current (A)1.051,.101.161.161.411.201.411.461..501.82
    Running Time (min)4444444444
    Protection Class (IP)IP44IP44IP44IP44IP44IP44IP44IP44IP44IP44
    Max. Turns (turn)21/3621/3621/3621/3621/3621/3621/3621/3621/3621/36
    L1/L2(mm)574/500574/500574/500574/500685/610685/610685/610685/610685/610705/630

    Our service:

    Welcome OEM&ODM orders

    1. Logo printing on products;
    2. Customized color box or carton;
    3. Any your ideas on products we can help you to design and put it into production.120 Volt 15RPM 45R AC Radio 10N.M Mosel Tubular Motor
