    12V LED Connection 45RM Roller Shutter Tubular Motor

    Ask Lasest Price
    Brand Name : SONGRUI
    Model Number : YX45RM-LED-10/15
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 Set/Sets per Month
    Delivery Time : 5-8 WORK DAYS
    • Product Details
    • Company Profile

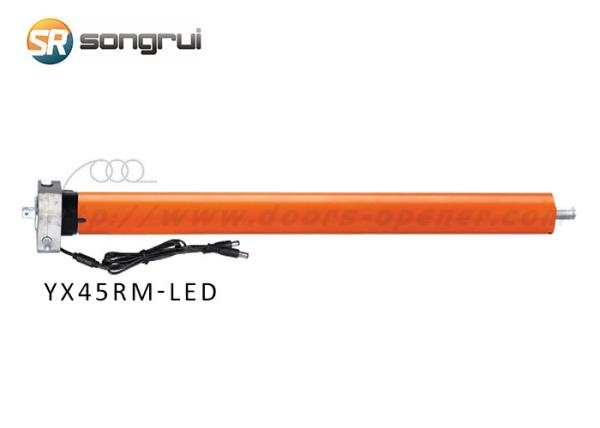

    12V LED Connection 45RM Roller Shutter Tubular Motor

    45RM Mechanical Limit Switch+radio+Manual override+12V LED Connection Tubular Motor Roller Shutter


    Detailed product description:

    1. Mechanical Limit Switch+radio+Manual override+12V LED Connection.

    2. Motors are the driving force behind many roller shutters and windows, awnings, garage doors, and projection screens.

    3. The product emits minial noise during operation, are easy to conceal, compact in size and whisk to install.


    Main technical parameters:

    YX45RM-LED 10N.m/20Kg

    AC230V 50Hz

    TypeYX45RM-LED-10/15YX45RM-LED-10/26YX45RM-LED-15/15YX45RM-LED-20/15YX45RM-LED-20/26YX45RM-LED-30/15YX45RM-LED-40/15YX45RM-LED-50/12YX45RM-LED-60/8YX45RM-LED-70/9
    Rated Torque (N.m)10101520203040506070
    Rated Speed (rpm)152615152615151289
    Rated Power (W)125150140150215200215230235244
    Rated Current (A)0.540.650.610.650.930.900.931.001.021.06
    Running Time (min)4444444444
    Protection Class (IP)IP44IP44IP44IP44IP44IP44IP44IP44IP44IP44
    Max. Turns (turn)32323232323232323232
    L1/L2(mm)665/580665/580665/580665/580775/690775/690775/690775/690775/690795/710

    AC120V 60Hz

    TypeYX45RM-LED-10/18YX45RM-LED-10/31YX45RM-LED-15/18YX45RM-LED-20/18YX45RM-LED-20/31YX45RM-LED-30/14YX45RM-LED-40/14YX45RM-LED-50/14YX45RM-LED-60/10YX45RM-LED-70/11
    Rated Torque (N.m)10101520203040506070
    Rated Speed (rpm)18311818311414141011
    Rated Power (W)133140140140165149165180185219
    Rated Current (A)1.051,.101.161.161.411.201.411.461..501.82
    Running Time (min)4444444444
    Protection Class (IP)IP44IP44IP44IP44IP44IP44IP44IP44IP44IP44
    Max. Turns (turn)32323232323232323232
    L1/L2(mm)665/580665/580665/580665/580775/690775/690775/690775/690775/690795/710

    Our service:

    Welcome OEM&ODM orders

    1. Logo printing on products;
    2. Customized color box or carton;
    3. Any your ideas on products we can help you to design and put it into production.12V LED Connection 45RM Roller Shutter Tubular Motor
