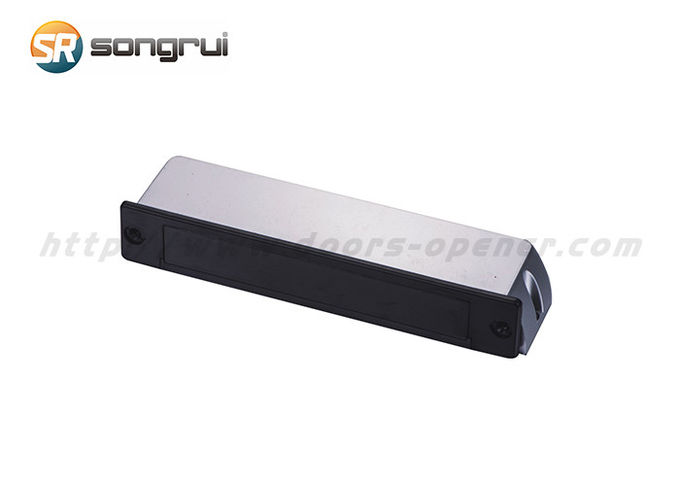

    Anti-Pinch Infrared Motion Sensor For Automatic Door Opening

    Ask Lasest Price
    Brand Name : SONGRUI
    Model Number : YS110
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 Piece/Pieces per Month
    Delivery Time : 5-8 WORK DAYS
    • Product Details
    • Company Profile

    Anti-Pinch Infrared Motion Sensor For Automatic Door Opening

    Anti-Pinch Infrared Motion Sensor For Automatic Door Opening

    Product features:
    1. Self-learning function make the installation more easier.
    2. Self-recovery function can reduce the mis-detecting from sunshine, lighting, shaking.
    3. Safe, beautiful, economic, comfortable.

    Specifications:

    Anti-pinch Infrared motion sensor for automatic door opening(YS110)

    Approval

    CE & ISO9001

    Power output

    AC / DC 12-30 V ( + / - 10% )

    Type of ray

    Infrared light modulation

    Photosource

    Infrared 940 mm

    Light beam

    8 channel transmit, 8 channel receive

    Quiescent current

    35mA

    Working current

    73mA

    Self-learn time

    15s

    Operating display

    Standby: blue LED,Detecting: red LED

    Temperature range

    - 40℃ - 60℃

    Maximum installation

    2.5m

    Maximum detection area

    2000(W) × 500(D)mm

    Hold-Up time

    500ms

    Response time

    ≤ 100ms

    Changeover mode

    High/ Low sensitivity and FA/FB adjustable

    Signal output

    Relay,1 pair contact point optional

    IP

    IP54

    Mechanical behavior

    Maximum

    Connection

    1 - 1.5 mm² 5 pin terminal

    Shell

    ABS

    optical surface

    PMMA

    Installation

    Installation

    Weight

    about 145g

    Dimension

    Exposed 200(L)×49(W)×32(H)mm

    Conceal 152(L)×38(W)×25(H)mm


    Our service:

    Welcome OEM&ODM orders

    1. Logo printing on products;
    2. Customized color box or carton;
    3. Any your ideas on products we can help you to design and put it into production.
