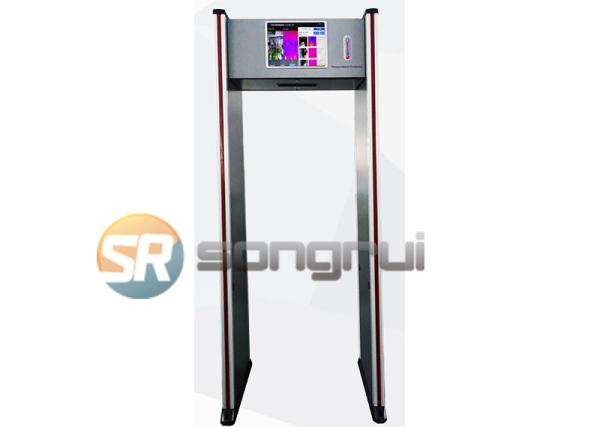

Facial recognition/Metal security inspection
Integrated door of thermal imaging and temperature measurement
Product overview
This product uses infrared thermal imaging technology to quickly
grasp the temperature data, and non-contact body temperature
detection is carried out for the personnel to be inspected.
Abnormal body temperature will be prompted through sound and light
alarm, and therefore can effectively prevent the large-scale
disease transmission.
This product adopts the world's advanced electromagnetic
compatibility design and anti-vibration design, with ultra-high
sensitivity, strong anti-interference ability and anti-seismic
ability. It can detect the metal of passing personnel, check
whether the passing personnel carry metal contraband, effectively
help the anti-epidemic work, and realize the prevention and control
of public security.
Temperature measurement + Metal detection (Free to match)
TP-R2020-N (Without security check)
TP-R2020-6 (Security check with six zones)
TP-R2020-M (Thermodetector only)
Product performance
Temperature measurement while passing, non-contact remote passive
imaging technology, on-line monitoring of multi-target body
temperature
12 inch touch-sensitive integrated machine
Product advantages (1)
It is an intelligent product integrating high-precision thermal
imaging temperature sensor, built-in intelligent face capture
algorithm and image processing technology, with face detection,
body temperature detection, face capture and other powerful
functions
Product advantages (2)
The upper limit of multi-person temperature measurement can be up
to 15 people.
Product advantages (3)
Support split screen: The product can be connected with external large-screen display to
master the dynamic in real time
Product advantages (4)
Unlimited height: Suitable for kindergartens, primary schools, middle schools,
university, height 0.5m - 2.0m universal
Fast passage: The temperature of personnel in the screen all can be detected to
realize the fast passage.
External projection screen: It can be connected with large screen and display in real time.
Multi scene: Bicycles, wheelbarrows, people in helmets, pregnant women, the
elderly, children and so on can pass through the product at ease.
Product parameters (1)
| Thermal imaging | |
| Resolution ratio | 256x 192 |
| Spacing of image sources | 17um |
| Lens | 3.6 mm |
| Sensitivity | ＜60mk |
| Angle of viewing field | 35°X 27° ( HX V) |
| Visible light | |
| Sensor | 1/2.8 CMOS |
| Resolution ratio | 1920X1080 |
| Lens size | 4mm, 84°X45° |
| Size | 280mmx85mmx75mm |
| Precision | ±0.3℃ |
| Alarm temperature | Settable |
Product size
Overall dimension:2300*810*500mm
Passage size: 1900*700*500mm
Packing size
Door header packaging: 750*370*415mm
Door panel packaging: 2280*600*180mm
Net weight of door header: 20kg, Gross weight: 25kg
Net weight of door panel: 40kg, Gross weight: 50kg
Packing list
Door header x 1
Left door panel x 1
Right door panel x 1
Foot cover at the bottom of door panel x 2
Foot cover at the top of door panel x 2
Power cord x 1
Door key x 1
Certificate x 1
Instructions x 1
Hexagon wrench x 1
Hexagon socket flat round head screw x 8 (M8x80)
Customized service
Silk screen printing LOGO
Support silk screen printing logo, panel film, design and style
Custom style
Custom height, custom width, custom functions, such as booting
advertising, LED display advertising, etc
Customized backstage
Docking face recognition, campus card, WeChat, cloud system, and
other background data docking
Usage scenarios
Crowded places: Subway station, high-speed rail station, airport, railway station,
bus station, port, wharf, etc
Municipal Enterprises: Schools, hospitals, courts, procuratorates, prisons, detention
centers, reeducation through labor centers, drug rehabilitation
centers, public security bureaus, banks, large enterprises,
industrial parks, etc
Public place: Exhibition hall, museum, gymnasium, entertainment place,
supermarket
Corresponding certificate
Test report, CE certification, ROHS certification, FCC
certification
After-sale service
01 Online upgrade
No need to send back hardware, online upgrade, more smooth
operation of system, more stable, more intelligent
02 After-sale service
Provide online and offline multi-mode after-sales service, response
in 10 minutes, follow-up by special personnel, and provide
solutions within 12 hours
03 One-year shelf life
One year warranty, lifelong maintenance service, and provide
long-term supply of spare parts and technical support
04 Return and exchange
If the calibration is invalid and the deviation is more than 0.5
degrees, it can be returned and replaced. Please refer to the
return policy for details.
